sc_module.h File Reference

#include "sysc/kernel/sc_kernel_ids.h"
#include "sysc/kernel/sc_macros.h"
#include "sysc/kernel/sc_module_name.h"
#include "sysc/kernel/sc_process.h"
#include "sysc/kernel/sc_process_handle.h"
#include "sysc/kernel/sc_sensitive.h"
#include "sysc/kernel/sc_time.h"
#include "sysc/kernel/sc_wait.h"
#include "sysc/kernel/sc_wait_cthread.h"
#include "sysc/utils/sc_list.h"
#include <type_traits>

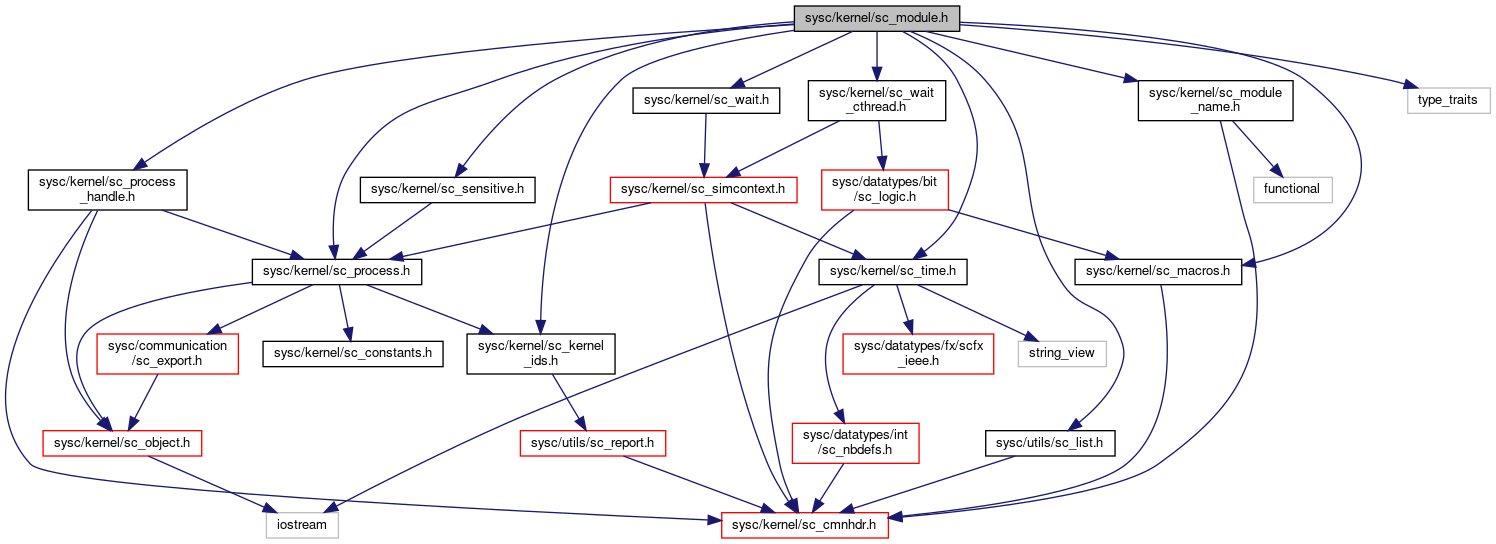

Include dependency graph for sc_module.h:

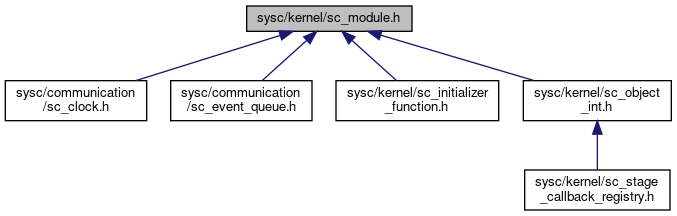

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sc_core::sc_bind_proxy
class	sc_core::sc_module

Namespaces
namespace	sc_core

Macros
#define	SC_SEMICOLON_   /* nothing */
#define	SC_MODULE(user_module_name)    struct user_module_name : ::sc_core::sc_module
#define	SC_HAS_PROCESS(user_module_type)    static_assert(sc_core::sc_has_process_used, "no-op to avoid stray ';'")
#define	SC_CURRENT_USER_MODULE_TYPE    std::remove_reference<decltype(*this)>::type
#define	SC_CTOR(...)    SC_CTOR_IMPL_(__VA_ARGS__)(__VA_ARGS__)
#define	SC_CTOR_IMPL_ONE_(user_module_name)    user_module_name( ::sc_core::sc_module_name )
#define	SC_CTOR_IMPL_MORE_(user_module_name, ...)    user_module_name( ::sc_core::sc_module_name, __VA_ARGS__)
#define	SC_CTOR_IMPL_(...)    SC_CONCAT_HELPER_(SC_CTOR_IMPL_, SC_VARARG_HELPER_EXPAND_(__VA_ARGS__))
#define	SC_CTHREAD(func, edge)
#define	SC_METHOD(func)
#define	SC_THREAD(func)

Typedefs
typedef sc_module	sc_core::sc_channel
typedef sc_module	sc_core::sc_behavior

Functions
SC_API sc_module *	sc_core::sc_module_dynalloc (sc_module *)

Variables
SC_API const sc_bind_proxy	sc_core::SC_BIND_PROXY_NIL
static constexpr bool	sc_core::sc_has_process_used = true

Macro Definition Documentation

SC_CTHREAD

#define SC_CTHREAD	(		func,
			edge
	)

Value:

    this->declare_cthread_process                                             \
      ( SC_MAKE_FUNC_PTR(SC_CURRENT_USER_MODULE_TYPE, func), #func, edge )    \
    SC_SEMICOLON_

Definition at line 449 of file sc_module.h.

SC_CTOR

#define SC_CTOR

(

...

)

SC_CTOR_IMPL_(__VA_ARGS__)(__VA_ARGS__)

Definition at line 425 of file sc_module.h.

SC_CTOR_IMPL_

#define SC_CTOR_IMPL_

(

...

)

SC_CONCAT_HELPER_(SC_CTOR_IMPL_, SC_VARARG_HELPER_EXPAND_(__VA_ARGS__))

Definition at line 435 of file sc_module.h.

SC_CTOR_IMPL_MORE_

#define SC_CTOR_IMPL_MORE_	(		user_module_name,
			...
	)		user_module_name( ::sc_core::sc_module_name, __VA_ARGS__)

Definition at line 433 of file sc_module.h.

SC_CTOR_IMPL_ONE_

#define SC_CTOR_IMPL_ONE_

(

user_module_name

)

user_module_name( ::sc_core::sc_module_name )

Definition at line 429 of file sc_module.h.

SC_CURRENT_USER_MODULE_TYPE

#define SC_CURRENT_USER_MODULE_TYPE    std::remove_reference<decltype(*this)>::type

Definition at line 420 of file sc_module.h.

SC_HAS_PROCESS

#define SC_HAS_PROCESS

(

user_module_type

)

static_assert(sc_core::sc_has_process_used, "no-op to avoid stray ';'")

Definition at line 417 of file sc_module.h.

SC_METHOD

#define SC_METHOD

(

func

)

Value:

    this->declare_method_process                                              \
      ( SC_MAKE_FUNC_PTR(SC_CURRENT_USER_MODULE_TYPE, func), #func )          \
    SC_SEMICOLON_

Definition at line 454 of file sc_module.h.

SC_MODULE

#define SC_MODULE

(

user_module_name

)

struct user_module_name : ::sc_core::sc_module

Definition at line 409 of file sc_module.h.

SC_SEMICOLON_

#define SC_SEMICOLON_   /* nothing */

Definition at line 399 of file sc_module.h.

SC_THREAD

#define SC_THREAD

(

func

)

Value:

    this->declare_thread_process                                              \
      ( SC_MAKE_FUNC_PTR(SC_CURRENT_USER_MODULE_TYPE, func), #func )          \
    SC_SEMICOLON_

Definition at line 459 of file sc_module.h.
