#include <sysc/communication/sc_mutex.h>

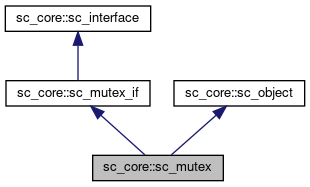

Inheritance diagram for sc_core::sc_mutex:

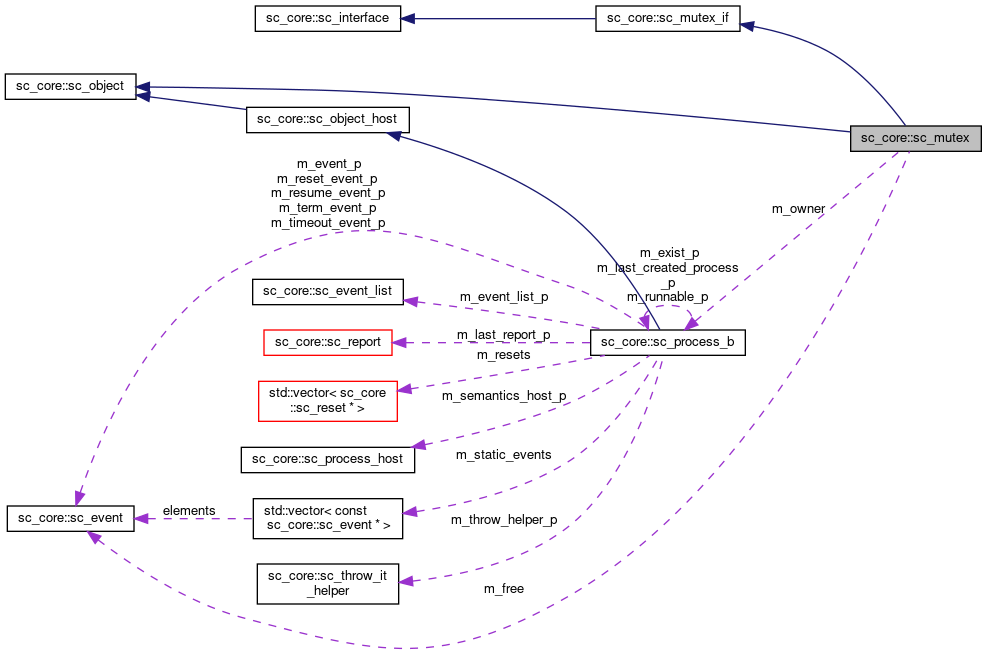

Collaboration diagram for sc_core::sc_mutex:
Public Member Functions | |
| sc_mutex () | |
| sc_mutex (const char *name_) | |
| virtual | ~sc_mutex () |
| virtual int | lock () |
| virtual int | trylock () |
| virtual int | unlock () |
| virtual const char * | kind () const |
| virtual int | lock ()=0 |
| virtual int | trylock ()=0 |
| virtual int | unlock ()=0 |
 Public Member Functions inherited from sc_core::sc_interface | |
| virtual void | register_port (sc_port_base &port_, const char *if_typename_) |
| virtual const sc_event & | default_event () const |
| virtual | ~sc_interface () |
| Public Member Functions inherited from sc_core::sc_object | |
| const char * | name () const |
| const char * | basename () const |
| virtual void | print (::std::ostream &os=::std::cout) const |
| virtual void | dump (::std::ostream &os=::std::cout) const |
| virtual void | trace (sc_trace_file *tf) const |
| virtual const char * | kind () const |
| sc_simcontext * | simcontext () const |
| bool | add_attribute (sc_attr_base &) |
| sc_attr_base * | get_attribute (const std::string &name_) |
| const sc_attr_base * | get_attribute (const std::string &name_) const |
| sc_attr_base * | remove_attribute (const std::string &name_) |
| void | remove_all_attributes () |
| int | num_attributes () const |
| sc_attr_cltn & | attr_cltn () |
| const sc_attr_cltn & | attr_cltn () const |
| virtual const std::vector< sc_event * > & | get_child_events () const |
| virtual const std::vector< sc_object * > & | get_child_objects () const |
| sc_object * | get_parent () const |
| sc_object * | get_parent_object () const |
| virtual | ~sc_object () |
Protected Member Functions | |
| bool | in_use () const |
| Protected Member Functions inherited from sc_core::sc_mutex_if | |
| sc_mutex_if () | |
| Protected Member Functions inherited from sc_core::sc_interface | |
| sc_interface () | |
| Protected Member Functions inherited from sc_core::sc_object | |
| sc_object () | |
| sc_object (const char *nm) | |
| sc_object (const sc_object &) | |
| sc_object & | operator= (const sc_object &) |
| virtual hierarchy_scope | get_hierarchy_scope () |
Protected Attributes | |
| sc_process_b * | m_owner |
| sc_event | m_free |
Detailed Description
Definition at line 45 of file sc_mutex.h.
Constructor & Destructor Documentation
◆ sc_mutex() [1/2]
| sc_core::sc_mutex::sc_mutex | ( | ) |
◆ sc_mutex() [2/2]
|
explicit |
◆ ~sc_mutex()
|
virtual |
Member Function Documentation
◆ in_use()
|
inlineprotected |
Definition at line 76 of file sc_mutex.h.
◆ kind()
|
inlinevirtual |
Reimplemented from sc_core::sc_object.
Definition at line 69 of file sc_mutex.h.
◆ lock()
|
virtual |
Implements sc_core::sc_mutex_if.
◆ trylock()
|
virtual |
Implements sc_core::sc_mutex_if.
◆ unlock()
|
virtual |
Implements sc_core::sc_mutex_if.
Member Data Documentation
◆ m_free
|
protected |
Definition at line 82 of file sc_mutex.h.
◆ m_owner
|
protected |
Definition at line 81 of file sc_mutex.h.
The documentation for this class was generated from the following file:
- sysc/communication/sc_mutex.h
