sc_core::sc_inout< T > Class Template Reference

#include <sysc/communication/sc_signal_ports.h>

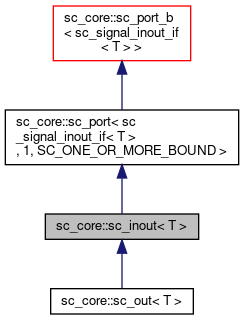

Inheritance diagram for sc_core::sc_inout< T >:
Inheritance graph
[legend]

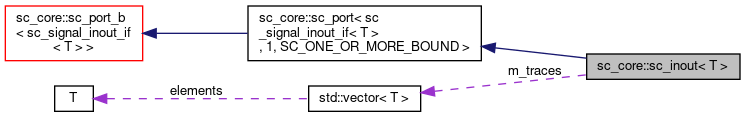

Collaboration diagram for sc_core::sc_inout< T >:
Collaboration graph
[legend]

Public Types

typedef T data_type

typedef sc_signal_inout_if< data_type > if_type

typedef sc_port< if_type, 1, SC_ONE_OR_MORE_BOUND > base_type

typedef sc_inout< data_type > this_type

typedef sc_signal_in_if< data_type > in_if_type

typedef sc_port< in_if_type, 1, SC_ONE_OR_MORE_BOUND > in_port_type

typedef if_type inout_if_type

typedef base_type inout_port_type

- Public Types inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
typedef sc_port_base base_type

typedef sc_port_b< sc_signal_inout_if< T > > this_type

typedef this_type port_type

- Public Types inherited from sc_core::sc_port_base
typedef sc_port_base this_type


Public Member Functions

 sc_inout ()

 sc_inout (const char *name_)

 sc_inout (inout_if_type &interface_)

 sc_inout (const char *name_, inout_if_type &interface_)

 sc_inout (inout_port_type &parent_)

 sc_inout (const char *name_, inout_port_type &parent_)

 sc_inout (this_type &parent_)

 sc_inout (const char *name_, this_type &parent_)

virtual ~sc_inout ()

const sc_event & default_event () const

const sc_event & value_changed_event () const

const data_type & read () const

 operator const data_type & () const

bool event () const

void write (const data_type &value_)

this_type & operator= (const data_type &value_)

this_type & operator= (const in_if_type &interface_)

this_type & operator= (const in_port_type &port_)

this_type & operator= (const inout_port_type &port_)

this_type & operator= (const this_type &port_)

void initialize (const data_type &value_)

void initialize (const in_if_type &interface_)

virtual void end_of_elaboration ()

sc_event_finder & value_changed () const

virtual const char * kind () const

void add_trace_internal (sc_trace_file *, const std::string &) const

void add_trace (sc_trace_file *, const std::string &) const

- Public Member Functions inherited from sc_core::sc_port< sc_signal_inout_if< T >, 1, SC_ONE_OR_MORE_BOUND >
 sc_port ()

 sc_port (const char *name_)

 sc_port (sc_signal_inout_if< T > &interface_)

 sc_port (const char *name_, sc_signal_inout_if< T > &interface_)

 sc_port (base_type &parent_)

 sc_port (const char *name_, base_type &parent_)

 sc_port (this_type &parent_)

 sc_port (const char *name_, this_type &parent_)

virtual ~sc_port ()

virtual const char * kind () const

- Public Member Functions inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
virtual void bind (sc_signal_inout_if< T > &interface_)

virtual void bind (port_type &parent_)

void operator() (sc_signal_inout_if< T > &interface_)

void operator() (port_type &parent_)

int size () const

sc_signal_inout_if< T > * operator-> ()

const sc_signal_inout_if< T > * operator-> () const

const sc_signal_inout_if< T > * get_interface (int iface_i) const

sc_signal_inout_if< T > * get_interface (int iface_i)

virtual sc_interface * get_interface ()

virtual const sc_interface * get_interface () const

sc_signal_inout_if< T > * operator[] (int index_)

const sc_signal_inout_if< T > * operator[] (int index_) const

virtual std::type_index get_interface_type () const

- Public Member Functions inherited from sc_core::sc_port_base
int bind_count ()

virtual sc_interface * get_interface ()=0

virtual const sc_interface * get_interface () const =0

virtual const char * kind () const

virtual std::type_index get_interface_type () const =0

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

virtual void print (::std::ostream &os=::std::cout) const

virtual void dump (::std::ostream &os=::std::cout) const

virtual void trace (sc_trace_file *tf) const

virtual const char * kind () const

sc_simcontext * simcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_base * get_attribute (const std::string &name_)

const sc_attr_base * get_attribute (const std::string &name_) const

sc_attr_base * remove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltn & attr_cltn ()

const sc_attr_cltn & attr_cltn () const

virtual const std::vector< sc_event * > & get_child_events () const

virtual const std::vector< sc_object * > & get_child_objects () const

sc_object * get_parent () const

sc_object * get_parent_object () const

virtual ~sc_object ()


Protected Member Functions

void remove_traces () const

- Protected Member Functions inherited from sc_core::sc_port_b< sc_signal_inout_if< T > >
 sc_port_b (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_b (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_b ()

virtual int vbind (sc_interface &)

virtual int vbind (sc_port_base &)

virtual void make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void make_sensitive (sc_method_handle, sc_event_finder *=0) const

- Protected Member Functions inherited from sc_core::sc_port_base
 sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_base ()

void bind (sc_interface &interface_)

void bind (this_type &parent_)

virtual int vbind (sc_interface &)=0

virtual int vbind (sc_port_base &)=0

virtual void before_end_of_elaboration ()

virtual void end_of_elaboration ()

virtual void start_of_simulation ()

virtual void end_of_simulation ()

void report_error (const char *id, const char *add_msg=0) const

virtual void make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void make_sensitive (sc_method_handle, sc_event_finder *=0) const

void add_static_event (sc_method_handle process_p, const sc_event &event) const

void add_static_event (sc_thread_handle process_p, const sc_event &event) const

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_object & operator= (const sc_object &)

virtual hierarchy_scope get_hierarchy_scope ()


Protected Attributes

data_type * m_init_val

sc_trace_params_vec * m_traces

- Protected Attributes inherited from sc_core::sc_port_base
sc_bind_info * m_bind_info


Detailed Description

template<class T>
class sc_core::sc_inout< T >

Definition at line 904 of file sc_signal_ports.h.

Member Typedef Documentation

◆ base_type

template<class T >
typedef sc_port<if_type,1,SC_ONE_OR_MORE_BOUND> sc_core::sc_inout< T >::base_type

Definition at line 914 of file sc_signal_ports.h.

◆ data_type

template<class T >
typedef T sc_core::sc_inout< T >::data_type

Definition at line 911 of file sc_signal_ports.h.

◆ if_type

template<class T >
typedef sc_signal_inout_if<data_type> sc_core::sc_inout< T >::if_type

Definition at line 913 of file sc_signal_ports.h.

◆ in_if_type

template<class T >
typedef sc_signal_in_if<data_type> sc_core::sc_inout< T >::in_if_type

Definition at line 917 of file sc_signal_ports.h.

◆ in_port_type

template<class T >
typedef sc_port<in_if_type,1,SC_ONE_OR_MORE_BOUND> sc_core::sc_inout< T >::in_port_type

Definition at line 918 of file sc_signal_ports.h.

◆ inout_if_type

template<class T >
typedef if_type sc_core::sc_inout< T >::inout_if_type

Definition at line 919 of file sc_signal_ports.h.

◆ inout_port_type

template<class T >
typedef base_type sc_core::sc_inout< T >::inout_port_type

Definition at line 920 of file sc_signal_ports.h.

◆ this_type

template<class T >
typedef sc_inout<data_type> sc_core::sc_inout< T >::this_type

Definition at line 915 of file sc_signal_ports.h.

Constructor & Destructor Documentation

◆ sc_inout() [1/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( )
inline

Definition at line 926 of file sc_signal_ports.h.

◆ sc_inout() [2/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( const char *  name_)
inlineexplicit

Definition at line 931 of file sc_signal_ports.h.

◆ sc_inout() [3/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( inout_if_type &  interface_)
inlineexplicit

Definition at line 936 of file sc_signal_ports.h.

◆ sc_inout() [4/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( const char *  name_,
inout_if_type &  interface_
)
inline

Definition at line 941 of file sc_signal_ports.h.

◆ sc_inout() [5/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( inout_port_type &  parent_)
inlineexplicit

Definition at line 946 of file sc_signal_ports.h.

◆ sc_inout() [6/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( const char *  name_,
inout_port_type &  parent_
)
inline

Definition at line 951 of file sc_signal_ports.h.

◆ sc_inout() [7/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( this_type &  parent_)
inline

Definition at line 956 of file sc_signal_ports.h.

◆ sc_inout() [8/8]

template<class T >
sc_core::sc_inout< T >::sc_inout ( const char *  name_,
this_type &  parent_
)
inline

Definition at line 961 of file sc_signal_ports.h.

◆ ~sc_inout()

template<class T >
sc_core::sc_inout< T >::~sc_inout
inlinevirtual

Definition at line 1095 of file sc_signal_ports.h.

Member Function Documentation

◆ add_trace()

template<class T >
void sc_core::sc_inout< T >::add_trace ( sc_trace_file *  tf_,
const std::string &  name_
) const
inline

Definition at line 1164 of file sc_signal_ports.h.

◆ add_trace_internal()

template<class T >
void sc_core::sc_inout< T >::add_trace_internal ( sc_trace_file *  tf_,
const std::string &  name_
) const
inline

Definition at line 1150 of file sc_signal_ports.h.

◆ default_event()

template<class T >
const sc_event & sc_core::sc_inout< T >::default_event ( ) const
inline

Definition at line 976 of file sc_signal_ports.h.

◆ end_of_elaboration()

template<class T >
void sc_core::sc_inout< T >::end_of_elaboration
inlinevirtual

Reimplemented from sc_core::sc_port_base.

Reimplemented in sc_core::sc_inout_rv< W >.

Definition at line 1127 of file sc_signal_ports.h.

◆ event()

template<class T >
bool sc_core::sc_inout< T >::event ( ) const
inline

Definition at line 997 of file sc_signal_ports.h.

◆ initialize() [1/2]

template<class T >
void sc_core::sc_inout< T >::initialize ( const data_type &  value_)
inline

Definition at line 1108 of file sc_signal_ports.h.

◆ initialize() [2/2]

template<class T >
void sc_core::sc_inout< T >::initialize ( const in_if_type &  interface_)
inline

Definition at line 1026 of file sc_signal_ports.h.

◆ kind()

template<class T >
virtual const char * sc_core::sc_inout< T >::kind ( ) const
inlinevirtual

Reimplemented from sc_core::sc_port< sc_signal_inout_if< T >, 1, SC_ONE_OR_MORE_BOUND >.

Reimplemented in sc_core::sc_out< T >, sc_core::sc_inout_rv< W >, and sc_core::sc_out_rv< W >.

Definition at line 1045 of file sc_signal_ports.h.

◆ operator const data_type &()

template<class T >
sc_core::sc_inout< T >::operator const data_type & ( ) const
inline

Definition at line 991 of file sc_signal_ports.h.

◆ operator=() [1/5]

template<class T >
this_type & sc_core::sc_inout< T >::operator= ( const data_type &  value_)
inline

Definition at line 1006 of file sc_signal_ports.h.

◆ operator=() [2/5]

template<class T >
this_type & sc_core::sc_inout< T >::operator= ( const in_if_type &  interface_)
inline

Definition at line 1009 of file sc_signal_ports.h.

◆ operator=() [3/5]

template<class T >
this_type & sc_core::sc_inout< T >::operator= ( const in_port_type &  port_)
inline

Definition at line 1012 of file sc_signal_ports.h.

◆ operator=() [4/5]

template<class T >
this_type & sc_core::sc_inout< T >::operator= ( const inout_port_type &  port_)
inline

Definition at line 1015 of file sc_signal_ports.h.

◆ operator=() [5/5]

template<class T >
this_type & sc_core::sc_inout< T >::operator= ( const this_type &  port_)
inline

Definition at line 1018 of file sc_signal_ports.h.

◆ read()

template<class T >
const data_type & sc_core::sc_inout< T >::read ( ) const
inline

Definition at line 988 of file sc_signal_ports.h.

◆ remove_traces()

template<class T >
void sc_core::sc_inout< T >::remove_traces
inlineprotected

Definition at line 1173 of file sc_signal_ports.h.

◆ value_changed()

template<class T >
sc_event_finder & sc_core::sc_inout< T >::value_changed ( ) const
inline

Definition at line 1039 of file sc_signal_ports.h.

◆ value_changed_event()

template<class T >
const sc_event & sc_core::sc_inout< T >::value_changed_event ( ) const
inline

Definition at line 982 of file sc_signal_ports.h.

◆ write()

template<class T >
void sc_core::sc_inout< T >::write ( const data_type &  value_)
inline

Definition at line 1003 of file sc_signal_ports.h.

Member Data Documentation

◆ m_init_val

template<class T >
data_type* sc_core::sc_inout< T >::m_init_val
protected

Definition at line 1050 of file sc_signal_ports.h.

◆ m_traces

template<class T >
sc_trace_params_vec* sc_core::sc_inout< T >::m_traces
mutableprotected

Definition at line 1063 of file sc_signal_ports.h.

The documentation for this class was generated from the following file:
Generated on Fri Aug 16 2024 16:36:36 for SystemC by doxygen 1.9.4
