sc_core::sc_trace_file_base Class Reference

#include <sysc/tracing/sc_trace_file_base.h>

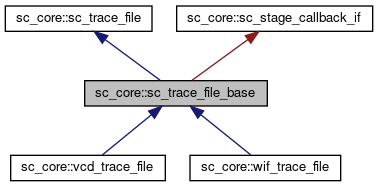

Inheritance diagram for sc_core::sc_trace_file_base:

Collaboration diagram for sc_core::sc_trace_file_base:

Public Types
typedef sc_time::value_type	unit_type

Public Member Functions
const char *	filename () const
bool	delta_cycles () const
virtual void	delta_cycles (bool flag)
virtual void	set_time_unit (double v, sc_time_unit tu)
Public Member Functions inherited from sc_core::sc_trace_file
	sc_trace_file ()
virtual void	trace (const unsigned int &object, const std::string &name, const char **enum_literals)=0
virtual void	write_comment (const std::string &comment)=0
virtual void	space (int n)
virtual void	delta_cycles (bool flag)
virtual void	set_time_unit (double v, sc_time_unit tu)=0

Protected Member Functions
	sc_trace_file_base (const char *name, const char *extension)
bool	is_initialized () const
bool	initialize ()
void	open_fp ()
virtual void	do_initialize ()=0
bool	add_trace_check (const std::string &name) const
bool	has_low_units () const
int	low_units_len () const
void	timestamp_in_trace_units (unit_type &high, unit_type &low) const
virtual	~sc_trace_file_base ()
Protected Member Functions inherited from sc_core::sc_trace_file
virtual void	cycle (bool delta_cycle)=0
const sc_dt::uint64 &	event_trigger_stamp (const sc_event &event) const
virtual	~sc_trace_file ()

Static Protected Member Functions
static sc_time::value_type	unit_to_fs (sc_time_unit tu)
static std::string	fs_unit_to_str (sc_trace_file_base::unit_type tu)

Protected Attributes
FILE *	fp
unit_type	trace_unit_fs
unit_type	kernel_unit_fs
bool	timescale_set_by_user

Detailed Description

Definition at line 57 of file sc_trace_file_base.h.

Member Typedef Documentation

unit_type

typedef sc_time::value_type sc_core::sc_trace_file_base::unit_type

Definition at line 62 of file sc_trace_file_base.h.

Constructor & Destructor Documentation

sc_trace_file_base()

sc_core::sc_trace_file_base::sc_trace_file_base ( const char *  name, const char *  extension  )

protected

~sc_trace_file_base()

virtual sc_core::sc_trace_file_base::~sc_trace_file_base ( )

protectedvirtual

Member Function Documentation

add_trace_check()

bool sc_core::sc_trace_file_base::add_trace_check ( const std::string &  name ) const

protected

delta_cycles() [1/2]

bool sc_core::sc_trace_file_base::delta_cycles ( ) const

inline

Definition at line 67 of file sc_trace_file_base.h.

delta_cycles() [2/2]

virtual void sc_core::sc_trace_file_base::delta_cycles ( bool  flag )

virtual

Reimplemented from sc_core::sc_trace_file.

do_initialize()

virtual void sc_core::sc_trace_file_base::do_initialize ( )

protectedpure virtual

filename()

const char * sc_core::sc_trace_file_base::filename ( ) const

inline

Definition at line 64 of file sc_trace_file_base.h.

fs_unit_to_str()

static std::string sc_core::sc_trace_file_base::fs_unit_to_str ( sc_trace_file_base::unit_type  tu )

staticprotected

has_low_units()

bool sc_core::sc_trace_file_base::has_low_units ( ) const

protected

initialize()

bool sc_core::sc_trace_file_base::initialize ( )

protected

is_initialized()

bool sc_core::sc_trace_file_base::is_initialized ( ) const

protected

low_units_len()

int sc_core::sc_trace_file_base::low_units_len ( ) const

protected

open_fp()

void sc_core::sc_trace_file_base::open_fp ( )

protected

set_time_unit()

virtual void sc_core::sc_trace_file_base::set_time_unit ( double  v, sc_time_unit  tu  )

virtual

Implements sc_core::sc_trace_file.

timestamp_in_trace_units()

void sc_core::sc_trace_file_base::timestamp_in_trace_units ( unit_type &  high, unit_type &  low  ) const

protected

unit_to_fs()

static sc_time::value_type sc_core::sc_trace_file_base::unit_to_fs ( sc_time_unit  tu )

staticprotected

Member Data Documentation

fp

FILE* sc_core::sc_trace_file_base::fp

protected

Definition at line 112 of file sc_trace_file_base.h.

kernel_unit_fs

unit_type sc_core::sc_trace_file_base::kernel_unit_fs

protected

Definition at line 115 of file sc_trace_file_base.h.

timescale_set_by_user

bool sc_core::sc_trace_file_base::timescale_set_by_user

protected

Definition at line 116 of file sc_trace_file_base.h.

trace_unit_fs

unit_type sc_core::sc_trace_file_base::trace_unit_fs

protected

Definition at line 114 of file sc_trace_file_base.h.

---

The documentation for this class was generated from the following file:

• sysc/tracing/sc_trace_file_base.h
