sc_core::sc_vector_base Class Reference

#include <sysc/utils/sc_vector.h>

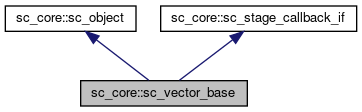

Inheritance diagram for sc_core::sc_vector_base:

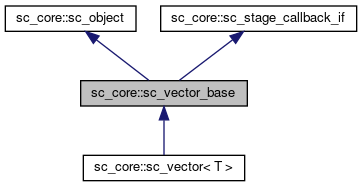

Collaboration diagram for sc_core::sc_vector_base:

Public Types
typedef sc_vector_element *	handle_type
typedef std::vector< handle_type >	storage_type
typedef storage_type::size_type	size_type
typedef storage_type::difference_type	difference_type
Public Types inherited from sc_core::sc_stage_callback_if
typedef unsigned int	stage_cb_mask

Public Member Functions
const char *	kind () const
std::vector< sc_object * > const &	get_elements () const
size_type	size () const
void	lock ()
bool	is_locked () const
void	report_empty_bind (const char *kind_, bool dst_range_) const
Public Member Functions inherited from sc_core::sc_object
const char *	name () const
const char *	basename () const
virtual void	print (::std::ostream &os=::std::cout) const
virtual void	dump (::std::ostream &os=::std::cout) const
virtual void	trace (sc_trace_file *tf) const
virtual const char *	kind () const
sc_simcontext *	simcontext () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &name_)
const sc_attr_base *	get_attribute (const std::string &name_) const
sc_attr_base *	remove_attribute (const std::string &name_)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
virtual const std::vector< sc_event * > &	get_child_events () const
virtual const std::vector< sc_object * > &	get_child_objects () const
sc_object *	get_parent () const
sc_object *	get_parent_object () const
virtual	~sc_object ()
Public Member Functions inherited from sc_core::sc_stage_callback_if
virtual	~sc_stage_callback_if ()
virtual void	stage_callback (const sc_stage &stage)=0

Protected Types
typedef storage_type::iterator	iterator
typedef storage_type::const_iterator	const_iterator

Protected Member Functions
	sc_vector_base ()
	sc_vector_base (const char *prefix)
	~sc_vector_base ()
void *	at (size_type i)
void const *	at (size_type i) const
void	reserve (size_type n)
void	clear ()
void	push_back (void *item)
bool	check_locked () const
void	check_index (size_type i) const
bool	check_init (size_type n) const
iterator	begin ()
iterator	end ()
const_iterator	begin () const
const_iterator	end () const
virtual sc_object *	object_cast (void *) const =0
sc_object *	implicit_cast (sc_object *p) const
sc_object *	implicit_cast (...) const
void	init_lock_cb ()
void	stage_callback (const sc_stage &stage)
Protected Member Functions inherited from sc_core::sc_object
	sc_object ()
	sc_object (const char *nm)
	sc_object (const sc_object &)
sc_object &	operator= (const sc_object &)
virtual hierarchy_scope	get_hierarchy_scope ()

Static Protected Member Functions
static std::string	make_name (const char *prefix, size_type index)

Friends
template<typename , typename >
class	sc_vector_assembly
template<typename , typename >
class	sc_vector_iter

Detailed Description

Definition at line 76 of file sc_vector.h.

Member Typedef Documentation

const_iterator

typedef storage_type::const_iterator sc_core::sc_vector_base::const_iterator

protected

Definition at line 107 of file sc_vector.h.

difference_type

typedef storage_type::difference_type sc_core::sc_vector_base::difference_type

Definition at line 89 of file sc_vector.h.

handle_type

typedef sc_vector_element* sc_core::sc_vector_base::handle_type

Definition at line 86 of file sc_vector.h.

iterator

typedef storage_type::iterator sc_core::sc_vector_base::iterator

protected

Definition at line 106 of file sc_vector.h.

size_type

typedef storage_type::size_type sc_core::sc_vector_base::size_type

Definition at line 88 of file sc_vector.h.

storage_type

typedef std::vector< handle_type > sc_core::sc_vector_base::storage_type

Definition at line 87 of file sc_vector.h.

Constructor & Destructor Documentation

sc_vector_base() [1/2]

sc_core::sc_vector_base::sc_vector_base ( )

protected

sc_vector_base() [2/2]

sc_core::sc_vector_base::sc_vector_base ( const char *  prefix )

inlineprotected

Definition at line 111 of file sc_vector.h.

~sc_vector_base()

sc_core::sc_vector_base::~sc_vector_base ( )

inlineprotected

Definition at line 120 of file sc_vector.h.

Member Function Documentation

at() [1/2]

void * sc_core::sc_vector_base::at ( size_type  i )

inlineprotected

Definition at line 123 of file sc_vector.h.

at() [2/2]

void const * sc_core::sc_vector_base::at ( size_type  i ) const

inlineprotected

Definition at line 126 of file sc_vector.h.

begin() [1/2]

iterator sc_core::sc_vector_base::begin ( )

inlineprotected

Definition at line 144 of file sc_vector.h.

begin() [2/2]

const_iterator sc_core::sc_vector_base::begin ( ) const

inlineprotected

Definition at line 147 of file sc_vector.h.

check_index()

void sc_core::sc_vector_base::check_index ( size_type  i ) const

protected

check_init()

bool sc_core::sc_vector_base::check_init ( size_type  n ) const

protected

check_locked()

bool sc_core::sc_vector_base::check_locked ( ) const

protected

clear()

void sc_core::sc_vector_base::clear ( )

inlineprotected

Definition at line 132 of file sc_vector.h.

end() [1/2]

iterator sc_core::sc_vector_base::end ( )

inlineprotected

Definition at line 145 of file sc_vector.h.

end() [2/2]

const_iterator sc_core::sc_vector_base::end ( ) const

inlineprotected

Definition at line 148 of file sc_vector.h.

get_elements()

std::vector< sc_object * > const & sc_core::sc_vector_base::get_elements

(

)

const

implicit_cast() [1/2]

sc_object * sc_core::sc_vector_base::implicit_cast (   ... ) const

protected

implicit_cast() [2/2]

sc_object * sc_core::sc_vector_base::implicit_cast ( sc_object *  p ) const

inlineprotected

Definition at line 152 of file sc_vector.h.

init_lock_cb()

void sc_core::sc_vector_base::init_lock_cb ( )

protected

is_locked()

bool sc_core::sc_vector_base::is_locked ( ) const

inline

Definition at line 100 of file sc_vector.h.

kind()

const char * sc_core::sc_vector_base::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 91 of file sc_vector.h.

lock()

void sc_core::sc_vector_base::lock ( )

inline

Definition at line 98 of file sc_vector.h.

make_name()

static std::string sc_core::sc_vector_base::make_name ( const char *  prefix, size_type  index  )

staticprotected

object_cast()

virtual sc_object * sc_core::sc_vector_base::object_cast ( void *  ) const

protectedpure virtual

Implemented in sc_core::sc_vector< T >.

push_back()

void sc_core::sc_vector_base::push_back ( void *  item )

inlineprotected

Definition at line 135 of file sc_vector.h.

report_empty_bind()

void sc_core::sc_vector_base::report_empty_bind	(	const char *	kind_,
		bool	dst_range_
	)		const

reserve()

void sc_core::sc_vector_base::reserve ( size_type  n )

inlineprotected

Definition at line 129 of file sc_vector.h.

size()

size_type sc_core::sc_vector_base::size ( ) const

inline

Definition at line 95 of file sc_vector.h.

stage_callback()

void sc_core::sc_vector_base::stage_callback ( const sc_stage &  stage )

protectedvirtual

Implements sc_core::sc_stage_callback_if.

Friends And Related Function Documentation

sc_vector_assembly

template<typename , typename >

friend class sc_vector_assembly

friend

Definition at line 81 of file sc_vector.h.

sc_vector_iter

template<typename , typename >

friend class sc_vector_iter

friend

Definition at line 82 of file sc_vector.h.

---

The documentation for this class was generated from the following file:

• sysc/utils/sc_vector.h
