#include <sysc/communication/sc_prim_channel.h>

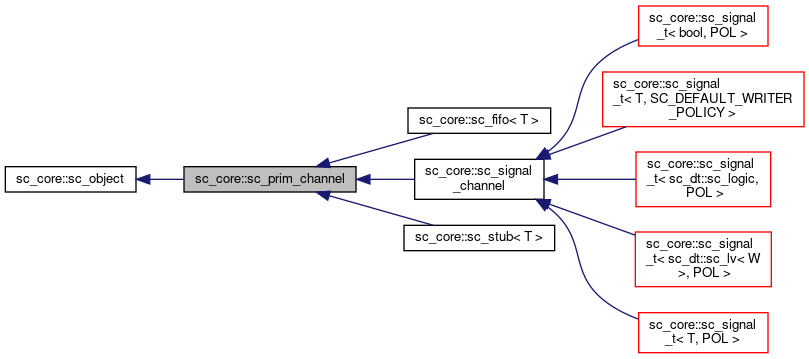

Inheritance diagram for sc_core::sc_prim_channel:

[legend]

Collaboration diagram for sc_core::sc_prim_channel:

Public Member Functions
virtual const char *	kind () const

bool	update_requested ()

void	request_update ()

void	async_request_update ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

virtual const char *	kind () const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector< sc_event * > &	get_child_events () const

virtual const std::vector< sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

virtual	~sc_object ()

Protected Member Functions
	sc_prim_channel ()

	sc_prim_channel (const char *)

virtual	~sc_prim_channel ()

virtual void	update ()

virtual void	before_end_of_elaboration ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	async_attach_suspending ()

void	async_detach_suspending ()

void	wait ()

void	wait (const sc_event &e)

void	wait (const sc_event_or_list &el)

void	wait (const sc_event_and_list &el)

void	wait (const sc_time &t)

void	wait (double v, sc_time_unit tu)

void	wait (const sc_time &t, const sc_event &e)

void	wait (double v, sc_time_unit tu, const sc_event &e)

void	wait (const sc_time &t, const sc_event_or_list &el)

void	wait (double v, sc_time_unit tu, const sc_event_or_list &el)

void	wait (const sc_time &t, const sc_event_and_list &el)

void	wait (double v, sc_time_unit tu, const sc_event_and_list &el)

void	wait (int n)

void	next_trigger ()

void	next_trigger (const sc_event &e)

void	next_trigger (const sc_event_or_list &el)

void	next_trigger (const sc_event_and_list &el)

void	next_trigger (const sc_time &t)

void	next_trigger (double v, sc_time_unit tu)

void	next_trigger (const sc_time &t, const sc_event &e)

void	next_trigger (double v, sc_time_unit tu, const sc_event &e)

void	next_trigger (const sc_time &t, const sc_event_or_list &el)

void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)

void	next_trigger (const sc_time &t, const sc_event_and_list &el)

void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)

bool	timed_out ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual hierarchy_scope	get_hierarchy_scope ()

Friends
class	sc_prim_channel_registry

class	sc_stub_registry

Detailed Description

Definition at line 44 of file sc_prim_channel.h.

Constructor & Destructor Documentation

◆ sc_prim_channel() [1/2]

sc_core::sc_prim_channel::sc_prim_channel ( )

protected

◆ sc_prim_channel() [2/2]

sc_core::sc_prim_channel::sc_prim_channel ( const char * )

explicitprotected

◆ ~sc_prim_channel()

virtual sc_core::sc_prim_channel::~sc_prim_channel ( )

protectedvirtual

Member Function Documentation

◆ async_attach_suspending()

void sc_core::sc_prim_channel::async_attach_suspending ( )

inlineprotected

Definition at line 352 of file sc_prim_channel.h.

◆ async_detach_suspending()

void sc_core::sc_prim_channel::async_detach_suspending ( )

inlineprotected

Definition at line 359 of file sc_prim_channel.h.

◆ async_request_update()

void sc_core::sc_prim_channel::async_request_update ( )

inline

Definition at line 345 of file sc_prim_channel.h.

◆ before_end_of_elaboration()

virtual void sc_core::sc_prim_channel::before_end_of_elaboration ( )

protectedvirtual

◆ end_of_elaboration()

virtual void sc_core::sc_prim_channel::end_of_elaboration ( )

protectedvirtual

◆ end_of_simulation()

virtual void sc_core::sc_prim_channel::end_of_simulation ( )

protectedvirtual

◆ kind()

virtual const char * sc_core::sc_prim_channel::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_buffer< T, POL >, sc_core::sc_clock, sc_core::sc_fifo< T >, sc_core::sc_signal_channel, sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_t< sc_dt::sc_lv< W >, POL >, sc_core::sc_signal_resolved, sc_core::sc_signal_rv< W >, and sc_core::sc_stub< T >.

Definition at line 51 of file sc_prim_channel.h.

◆ next_trigger() [1/12]

void sc_core::sc_prim_channel::next_trigger ( )

inlineprotected

Definition at line 145 of file sc_prim_channel.h.

◆ next_trigger() [2/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event & e )

inlineprotected

Definition at line 151 of file sc_prim_channel.h.

◆ next_trigger() [3/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event_and_list & el )

inlineprotected

Definition at line 157 of file sc_prim_channel.h.

◆ next_trigger() [4/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event_or_list & el )

inlineprotected

Definition at line 154 of file sc_prim_channel.h.

◆ next_trigger() [5/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_time & t )

inlineprotected

Definition at line 160 of file sc_prim_channel.h.

◆ next_trigger() [6/12]

void sc_core::sc_prim_channel::next_trigger	(	const sc_time &	t,
		const sc_event &	e
	)

inlineprotected

Definition at line 166 of file sc_prim_channel.h.

◆ next_trigger() [7/12]

void sc_core::sc_prim_channel::next_trigger	(	const sc_time &	t,
		const sc_event_and_list &	el
	)

inlineprotected

Definition at line 180 of file sc_prim_channel.h.

◆ next_trigger() [8/12]

void sc_core::sc_prim_channel::next_trigger	(	const sc_time &	t,
		const sc_event_or_list &	el
	)

inlineprotected

Definition at line 173 of file sc_prim_channel.h.

◆ next_trigger() [9/12]

void sc_core::sc_prim_channel::next_trigger	(	double	v,
		sc_time_unit	tu
	)

inlineprotected

Definition at line 163 of file sc_prim_channel.h.

◆ next_trigger() [10/12]

void sc_core::sc_prim_channel::next_trigger	(	double	v,
		sc_time_unit	tu,
		const sc_event &	e
	)

inlineprotected

Definition at line 169 of file sc_prim_channel.h.

◆ next_trigger() [11/12]

void sc_core::sc_prim_channel::next_trigger	(	double	v,
		sc_time_unit	tu,
		const sc_event_and_list &	el
	)

inlineprotected

Definition at line 183 of file sc_prim_channel.h.

◆ next_trigger() [12/12]

void sc_core::sc_prim_channel::next_trigger	(	double	v,
		sc_time_unit	tu,
		const sc_event_or_list &	el
	)

inlineprotected

Definition at line 176 of file sc_prim_channel.h.

◆ request_update()

void sc_core::sc_prim_channel::request_update ( )

inline

Definition at line 333 of file sc_prim_channel.h.

◆ start_of_simulation()

virtual void sc_core::sc_prim_channel::start_of_simulation ( )

protectedvirtual

◆ timed_out()

bool sc_core::sc_prim_channel::timed_out ( )

inlineprotected

Definition at line 190 of file sc_prim_channel.h.

◆ update()

virtual void sc_core::sc_prim_channel::update ( )

protectedvirtual

Reimplemented in sc_core::sc_buffer< T, POL >, sc_core::sc_fifo< T >, sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_t< sc_dt::sc_lv< W >, POL >, sc_core::sc_signal< bool, POL >, sc_core::sc_signal< sc_dt::sc_logic, POL >, sc_core::sc_signal_resolved, and sc_core::sc_signal_rv< W >.

◆ update_requested()

bool sc_core::sc_prim_channel::update_requested ( )

inline

Definition at line 54 of file sc_prim_channel.h.

◆ wait() [1/13]

void sc_core::sc_prim_channel::wait ( )

inlineprotected

Definition at line 100 of file sc_prim_channel.h.

◆ wait() [2/13]

void sc_core::sc_prim_channel::wait ( const sc_event & e )

inlineprotected

Definition at line 106 of file sc_prim_channel.h.

◆ wait() [3/13]

void sc_core::sc_prim_channel::wait ( const sc_event_and_list & el )

inlineprotected

Definition at line 112 of file sc_prim_channel.h.

◆ wait() [4/13]

void sc_core::sc_prim_channel::wait ( const sc_event_or_list & el )

inlineprotected

Definition at line 109 of file sc_prim_channel.h.

◆ wait() [5/13]

void sc_core::sc_prim_channel::wait ( const sc_time & t )

inlineprotected

Definition at line 115 of file sc_prim_channel.h.

◆ wait() [6/13]

void sc_core::sc_prim_channel::wait	(	const sc_time &	t,
		const sc_event &	e
	)

inlineprotected

Definition at line 121 of file sc_prim_channel.h.

◆ wait() [7/13]

void sc_core::sc_prim_channel::wait	(	const sc_time &	t,
		const sc_event_and_list &	el
	)

inlineprotected

Definition at line 133 of file sc_prim_channel.h.

◆ wait() [8/13]

void sc_core::sc_prim_channel::wait	(	const sc_time &	t,
		const sc_event_or_list &	el
	)

inlineprotected

Definition at line 127 of file sc_prim_channel.h.

◆ wait() [9/13]

void sc_core::sc_prim_channel::wait	(	double	v,
		sc_time_unit	tu
	)

inlineprotected

Definition at line 118 of file sc_prim_channel.h.

◆ wait() [10/13]

void sc_core::sc_prim_channel::wait	(	double	v,
		sc_time_unit	tu,
		const sc_event &	e
	)

inlineprotected

Definition at line 124 of file sc_prim_channel.h.

◆ wait() [11/13]

void sc_core::sc_prim_channel::wait	(	double	v,
		sc_time_unit	tu,
		const sc_event_and_list &	el
	)

inlineprotected

Definition at line 136 of file sc_prim_channel.h.

◆ wait() [12/13]

void sc_core::sc_prim_channel::wait	(	double	v,
		sc_time_unit	tu,
		const sc_event_or_list &	el
	)

inlineprotected

Definition at line 130 of file sc_prim_channel.h.

◆ wait() [13/13]

void sc_core::sc_prim_channel::wait ( int n )

inlineprotected

Definition at line 139 of file sc_prim_channel.h.

Friends And Related Function Documentation

◆ sc_prim_channel_registry

friend class sc_prim_channel_registry

friend

Definition at line 47 of file sc_prim_channel.h.

◆ sc_stub_registry

friend class sc_stub_registry

friend

Definition at line 48 of file sc_prim_channel.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_prim_channel.h
