sc_core::sc_signal_channel Class Reference

#include <sysc/communication/sc_signal.h>

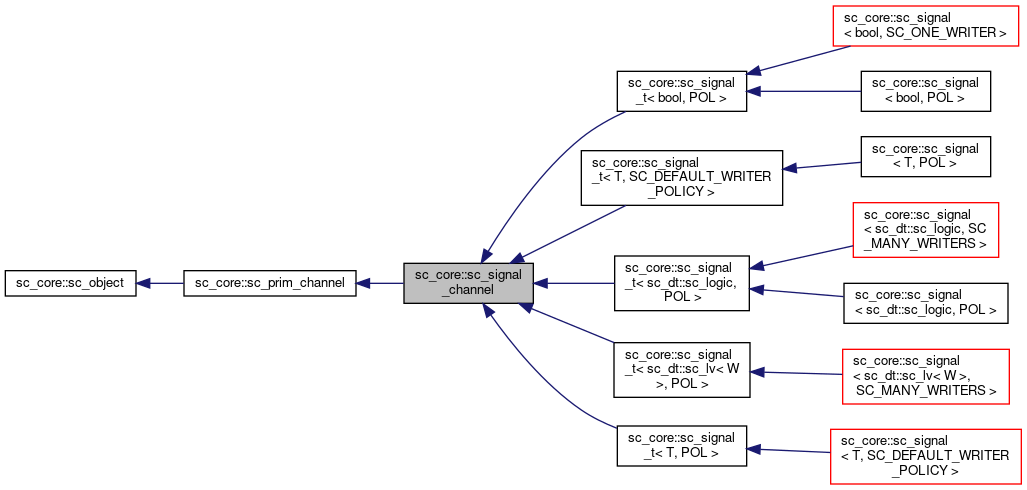

Inheritance diagram for sc_core::sc_signal_channel:

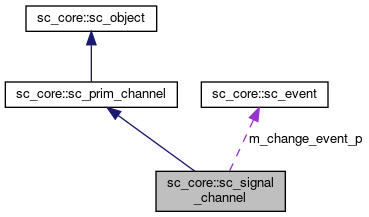

Collaboration diagram for sc_core::sc_signal_channel:

Public Member Functions
virtual	~sc_signal_channel ()
virtual const char *	kind () const
const sc_event &	default_event () const
const sc_event &	value_changed_event () const
bool	event () const
Public Member Functions inherited from sc_core::sc_prim_channel
virtual const char *	kind () const
bool	update_requested ()
void	request_update ()
void	async_request_update ()
Public Member Functions inherited from sc_core::sc_object
const char *	name () const
const char *	basename () const
virtual void	print (::std::ostream &os=::std::cout) const
virtual void	dump (::std::ostream &os=::std::cout) const
virtual void	trace (sc_trace_file *tf) const
virtual const char *	kind () const
sc_simcontext *	simcontext () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &name_)
const sc_attr_base *	get_attribute (const std::string &name_) const
sc_attr_base *	remove_attribute (const std::string &name_)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
virtual const std::vector< sc_event * > &	get_child_events () const
virtual const std::vector< sc_object * > &	get_child_objects () const
sc_object *	get_parent () const
sc_object *	get_parent_object () const
virtual	~sc_object ()

Protected Member Functions
	sc_signal_channel (const char *name_)
void	do_update ()
void	deprecated_get_data_ref () const
void	deprecated_get_new_value () const
void	deprecated_trace () const
sc_event *	lazy_kernel_event (sc_event **, const char *) const
void	notify_next_delta (sc_event *ev) const
Protected Member Functions inherited from sc_core::sc_prim_channel
	sc_prim_channel ()
	sc_prim_channel (const char *)
virtual	~sc_prim_channel ()
virtual void	update ()
virtual void	before_end_of_elaboration ()
virtual void	end_of_elaboration ()
virtual void	start_of_simulation ()
virtual void	end_of_simulation ()
void	async_attach_suspending ()
void	async_detach_suspending ()
void	wait ()
void	wait (const sc_event &e)
void	wait (const sc_event_or_list &el)
void	wait (const sc_event_and_list &el)
void	wait (const sc_time &t)
void	wait (double v, sc_time_unit tu)
void	wait (const sc_time &t, const sc_event &e)
void	wait (double v, sc_time_unit tu, const sc_event &e)
void	wait (const sc_time &t, const sc_event_or_list &el)
void	wait (double v, sc_time_unit tu, const sc_event_or_list &el)
void	wait (const sc_time &t, const sc_event_and_list &el)
void	wait (double v, sc_time_unit tu, const sc_event_and_list &el)
void	wait (int n)
void	next_trigger ()
void	next_trigger (const sc_event &e)
void	next_trigger (const sc_event_or_list &el)
void	next_trigger (const sc_event_and_list &el)
void	next_trigger (const sc_time &t)
void	next_trigger (double v, sc_time_unit tu)
void	next_trigger (const sc_time &t, const sc_event &e)
void	next_trigger (double v, sc_time_unit tu, const sc_event &e)
void	next_trigger (const sc_time &t, const sc_event_or_list &el)
void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
void	next_trigger (const sc_time &t, const sc_event_and_list &el)
void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
bool	timed_out ()
Protected Member Functions inherited from sc_core::sc_object
	sc_object ()
	sc_object (const char *nm)
	sc_object (const sc_object &)
sc_object &	operator= (const sc_object &)
virtual hierarchy_scope	get_hierarchy_scope ()

Protected Attributes
sc_event *	m_change_event_p
sc_dt::uint64	m_change_stamp

Detailed Description

Definition at line 83 of file sc_signal.h.

Constructor & Destructor Documentation

sc_signal_channel()

sc_core::sc_signal_channel::sc_signal_channel ( const char *  name_ )

inlineprotected

Definition at line 88 of file sc_signal.h.

~sc_signal_channel()

virtual sc_core::sc_signal_channel::~sc_signal_channel ( )

virtual

Member Function Documentation

default_event()

const sc_event & sc_core::sc_signal_channel::default_event ( ) const

inline

Definition at line 104 of file sc_signal.h.

deprecated_get_data_ref()

void sc_core::sc_signal_channel::deprecated_get_data_ref ( ) const

protected

deprecated_get_new_value()

void sc_core::sc_signal_channel::deprecated_get_new_value ( ) const

protected

deprecated_trace()

void sc_core::sc_signal_channel::deprecated_trace ( ) const

protected

do_update()

void sc_core::sc_signal_channel::do_update ( )

protected

event()

bool sc_core::sc_signal_channel::event ( ) const

inline

Definition at line 111 of file sc_signal.h.

kind()

virtual const char * sc_core::sc_signal_channel::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_prim_channel.

Reimplemented in sc_core::sc_buffer< T, POL >, sc_core::sc_clock, sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_t< sc_dt::sc_lv< W >, POL >, sc_core::sc_signal_resolved, and sc_core::sc_signal_rv< W >.

Definition at line 100 of file sc_signal.h.

lazy_kernel_event()

sc_event * sc_core::sc_signal_channel::lazy_kernel_event ( sc_event **  , const char *    ) const

protected

notify_next_delta()

void sc_core::sc_signal_channel::notify_next_delta ( sc_event *  ev ) const

inlineprotected

Definition at line 124 of file sc_signal.h.

value_changed_event()

const sc_event & sc_core::sc_signal_channel::value_changed_event

(

)

const

Member Data Documentation

m_change_event_p

sc_event* sc_core::sc_signal_channel::m_change_event_p

mutableprotected

Definition at line 128 of file sc_signal.h.

m_change_stamp

sc_dt::uint64 sc_core::sc_signal_channel::m_change_stamp

protected

Definition at line 129 of file sc_signal.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_signal.h
