#include <sysc/tracing/sc_vcd_trace.h>

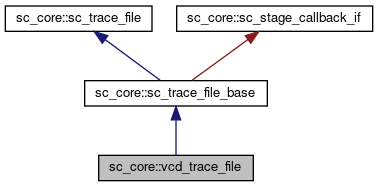

Inheritance diagram for sc_core::vcd_trace_file:

[legend]

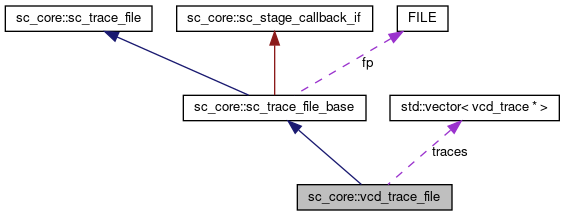

Collaboration diagram for sc_core::vcd_trace_file:

[legend]

Public Types
enum	vcd_enum { VCD_WIRE =0 , VCD_REAL , VCD_EVENT , VCD_TIME , VCD_LAST }

Public Types inherited from sc_core::sc_trace_file_base
typedef sc_time::value_type	unit_type

Public Member Functions
	vcd_trace_file (const char *name)

	~vcd_trace_file ()

std::string	obtain_name ()

Public Member Functions inherited from sc_core::sc_trace_file_base
const char *	filename () const

bool	delta_cycles () const

virtual void	delta_cycles (bool flag)

virtual void	set_time_unit (double v, sc_time_unit tu)

Public Member Functions inherited from sc_core::sc_trace_file
	sc_trace_file ()

virtual void	trace (const unsigned int &object, const std::string &name, const char **enum_literals)=0

virtual void	write_comment (const std::string &comment)=0

virtual void	space (int n)

virtual void	delta_cycles (bool flag)

virtual void	set_time_unit (double v, sc_time_unit tu)=0

Public Attributes
std::vector< vcd_trace * >	traces

Protected Member Functions
virtual void	trace (const sc_time &object, const std::string &name)

virtual void	trace (const sc_event &object, const std::string &name)

void	trace (const bool &object, const std::string &name)

virtual void	trace (const sc_dt::sc_bit &object, const std::string &name)

void	trace (const sc_dt::sc_logic &object, const std::string &name)

void	trace (const unsigned char &object, const std::string &name, int width)

void	trace (const unsigned short &object, const std::string &name, int width)

void	trace (const unsigned int &object, const std::string &name, int width)

void	trace (const unsigned long &object, const std::string &name, int width)

void	trace (const char &object, const std::string &name, int width)

void	trace (const short &object, const std::string &name, int width)

void	trace (const int &object, const std::string &name, int width)

void	trace (const long &object, const std::string &name, int width)

void	trace (const sc_dt::int64 &object, const std::string &name, int width)

void	trace (const sc_dt::uint64 &object, const std::string &name, int width)

void	trace (const float &object, const std::string &name)

void	trace (const double &object, const std::string &name)

void	trace (const sc_dt::sc_uint_base &object, const std::string &name)

void	trace (const sc_dt::sc_int_base &object, const std::string &name)

void	trace (const sc_dt::sc_unsigned &object, const std::string &name)

void	trace (const sc_dt::sc_signed &object, const std::string &name)

void	trace (const sc_dt::sc_fxval &object, const std::string &name)

void	trace (const sc_dt::sc_fxval_fast &object, const std::string &name)

void	trace (const sc_dt::sc_fxnum &object, const std::string &name)

void	trace (const sc_dt::sc_fxnum_fast &object, const std::string &name)

template<class T >
void	traceT (const T &object, const std::string &name, vcd_enum type=VCD_WIRE)

virtual void	trace (const sc_dt::sc_bv_base &object, const std::string &name)

virtual void	trace (const sc_dt::sc_lv_base &object, const std::string &name)

void	trace (const unsigned &object, const std::string &name, const char **enum_literals)

void	write_comment (const std::string &comment)

void	cycle (bool delta_cycle)

Protected Member Functions inherited from sc_core::sc_trace_file_base
	sc_trace_file_base (const char name, const char extension)

bool	is_initialized () const

bool	initialize ()

void	open_fp ()

virtual void	do_initialize ()=0

bool	add_trace_check (const std::string &name) const

bool	has_low_units () const

int	low_units_len () const

void	timestamp_in_trace_units (unit_type &high, unit_type &low) const

virtual	~sc_trace_file_base ()

Protected Member Functions inherited from sc_core::sc_trace_file
virtual void	cycle (bool delta_cycle)=0

const sc_dt::uint64 &	event_trigger_stamp (const sc_event &event) const

virtual	~sc_trace_file ()

Additional Inherited Members
Static Protected Member Functions inherited from sc_core::sc_trace_file_base
static sc_time::value_type	unit_to_fs (sc_time_unit tu)

static std::string	fs_unit_to_str (sc_trace_file_base::unit_type tu)

Protected Attributes inherited from sc_core::sc_trace_file_base
FILE *	fp

unit_type	trace_unit_fs

unit_type	kernel_unit_fs

bool	timescale_set_by_user

Detailed Description

Definition at line 68 of file sc_vcd_trace.h.

Member Enumeration Documentation

◆ vcd_enum

enum sc_core::vcd_trace_file::vcd_enum

Enumerator
VCD_WIRE
VCD_REAL
VCD_EVENT
VCD_TIME
VCD_LAST

Definition at line 73 of file sc_vcd_trace.h.

Constructor & Destructor Documentation

◆ vcd_trace_file()

sc_core::vcd_trace_file::vcd_trace_file ( const char * name )

◆ ~vcd_trace_file()

sc_core::vcd_trace_file::~vcd_trace_file ( )

Member Function Documentation

◆ cycle()

void sc_core::vcd_trace_file::cycle ( bool delta_cycle )

protectedvirtual

Implements sc_core::sc_trace_file.

◆ obtain_name()

std::string sc_core::vcd_trace_file::obtain_name ( )

◆ trace() [1/28]

void sc_core::vcd_trace_file::trace	(	const bool &	object,
		const std::string &	name
	)

protected

◆ trace() [2/28]

void sc_core::vcd_trace_file::trace	(	const char &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [3/28]

void sc_core::vcd_trace_file::trace	(	const double &	object,
		const std::string &	name
	)

protected

◆ trace() [4/28]

void sc_core::vcd_trace_file::trace	(	const float &	object,
		const std::string &	name
	)

protected

◆ trace() [5/28]

void sc_core::vcd_trace_file::trace	(	const int &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [6/28]

void sc_core::vcd_trace_file::trace	(	const long &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [7/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::int64 &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [8/28]

virtual void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_bit &	object,
		const std::string &	name
	)

protectedvirtual

◆ trace() [9/28]

virtual void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_bv_base &	object,
		const std::string &	name
	)

protectedvirtual

◆ trace() [10/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_fxnum &	object,
		const std::string &	name
	)

protected

◆ trace() [11/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_fxnum_fast &	object,
		const std::string &	name
	)

protected

◆ trace() [12/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_fxval &	object,
		const std::string &	name
	)

protected

◆ trace() [13/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_fxval_fast &	object,
		const std::string &	name
	)

protected

◆ trace() [14/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_int_base &	object,
		const std::string &	name
	)

protected

◆ trace() [15/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_logic &	object,
		const std::string &	name
	)

protected

◆ trace() [16/28]

virtual void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_lv_base &	object,
		const std::string &	name
	)

protectedvirtual

◆ trace() [17/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_signed &	object,
		const std::string &	name
	)

protected

◆ trace() [18/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_uint_base &	object,
		const std::string &	name
	)

protected

◆ trace() [19/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::sc_unsigned &	object,
		const std::string &	name
	)

protected

◆ trace() [20/28]

void sc_core::vcd_trace_file::trace	(	const sc_dt::uint64 &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [21/28]

virtual void sc_core::vcd_trace_file::trace	(	const sc_event &	object,
		const std::string &	name
	)

protectedvirtual

◆ trace() [22/28]

virtual void sc_core::vcd_trace_file::trace	(	const sc_time &	object,
		const std::string &	name
	)

protectedvirtual

◆ trace() [23/28]

void sc_core::vcd_trace_file::trace	(	const short &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [24/28]

void sc_core::vcd_trace_file::trace	(	const unsigned &	object,
		const std::string &	name,
		const char **	enum_literals
	)

protected

◆ trace() [25/28]

void sc_core::vcd_trace_file::trace	(	const unsigned char &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [26/28]

void sc_core::vcd_trace_file::trace	(	const unsigned int &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [27/28]

void sc_core::vcd_trace_file::trace	(	const unsigned long &	object,
		const std::string &	name,
		int	width
	)

protected

◆ trace() [28/28]

void sc_core::vcd_trace_file::trace	(	const unsigned short &	object,
		const std::string &	name,
		int	width
	)

protected

◆ traceT()

template<class T >

void sc_core::vcd_trace_file::traceT	(	const T &	object,
		const std::string &	name,
		vcd_enum	type = `VCD_WIRE`
	)

inlineprotected

Definition at line 179 of file sc_vcd_trace.h.

◆ write_comment()

void sc_core::vcd_trace_file::write_comment ( const std::string & comment )

protectedvirtual

Implements sc_core::sc_trace_file.

Member Data Documentation

◆ traces

std::vector<vcd_trace*> sc_core::vcd_trace_file::traces

Definition at line 230 of file sc_vcd_trace.h.

The documentation for this class was generated from the following file:

sysc/tracing/sc_vcd_trace.h
