#include <sysc/communication/sc_signal.h>

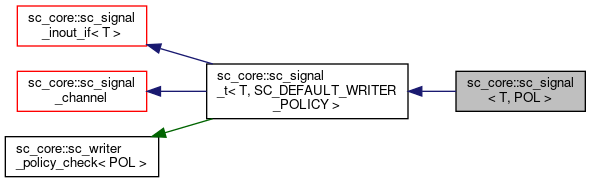

Inheritance diagram for sc_core::sc_signal< T, POL >:

[legend]

Collaboration diagram for sc_core::sc_signal< T, POL >:

[legend]

Public Types
typedef sc_signal_inout_if< T >	if_type

typedef sc_signal_t< T, POL >	base_type

typedef sc_signal< T, POL >	this_type

typedef T	value_type

typedef sc_writer_policy_check< POL >	policy_type

Public Member Functions
	sc_signal ()

	sc_signal (const char *name_)

	sc_signal (const char *name_, const value_type &initial_value_)

virtual	~sc_signal ()

this_type &	operator= (const this_type &a)

this_type &	operator= (const T &a)

this_type &	operator= (const sc_signal_in_if< T > &a)

this_type &	operator= (const this_type &a)

Public Member Functions inherited from sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >
virtual const char *	kind () const

virtual void	register_port (sc_port_base &, const char *)

virtual sc_writer_policy	get_writer_policy () const

virtual const sc_event &	default_event () const

virtual const sc_event &	value_changed_event () const

virtual const T &	read () const

virtual const T &	get_data_ref () const

virtual bool	event () const

virtual void	write (const T &)

	operator const T & () const

this_type &	operator= (const T &a)

this_type &	operator= (const sc_signal_in_if< T > &a)

this_type &	operator= (const this_type &a)

const T &	get_new_value () const

void	trace (sc_trace_file *tf) const

virtual void	print (::std::ostream &=::std::cout) const

virtual void	dump (::std::ostream &=::std::cout) const

virtual const sc_event &	value_changed_event () const =0

virtual const T &	read () const =0

virtual const T &	get_data_ref () const =0

virtual bool	event () const =0

Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &port_, const char *if_typename_)

virtual const sc_event &	default_event () const

virtual	~sc_interface ()

Public Member Functions inherited from sc_core::sc_signal_write_if< T >
	sc_signal_write_if ()

virtual void	write (const T &)=0

virtual sc_writer_policy	get_writer_policy () const

Public Member Functions inherited from sc_core::sc_signal_channel
virtual	~sc_signal_channel ()

virtual const char *	kind () const

const sc_event &	default_event () const

const sc_event &	value_changed_event () const

bool	event () const

Public Member Functions inherited from sc_core::sc_prim_channel
virtual const char *	kind () const

bool	update_requested ()

void	request_update ()

void	async_request_update ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

virtual const char *	kind () const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector< sc_event * > &	get_child_events () const

virtual const std::vector< sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

virtual	~sc_object ()

Additional Inherited Members
Protected Types inherited from sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >
typedef sc_signal_inout_if< T >	if_type

typedef sc_signal_channel	base_type

typedef sc_signal_t< T, POL >	this_type

typedef sc_writer_policy_check< POL >	policy_type

Protected Member Functions inherited from sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >
	sc_signal_t (const char *name_, const T &initial_value_)

virtual	~sc_signal_t ()

virtual void	update ()

void	do_update ()

Protected Member Functions inherited from sc_core::sc_signal_inout_if< T >
	sc_signal_inout_if ()

Protected Member Functions inherited from sc_core::sc_signal_in_if< T >
	sc_signal_in_if ()

Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Protected Member Functions inherited from sc_core::sc_signal_channel
	sc_signal_channel (const char *name_)

void	do_update ()

void	deprecated_get_data_ref () const

void	deprecated_get_new_value () const

void	deprecated_trace () const

sc_event *	lazy_kernel_event (sc_event *, const char ) const

void	notify_next_delta (sc_event *ev) const

Protected Member Functions inherited from sc_core::sc_prim_channel
	sc_prim_channel ()

	sc_prim_channel (const char *)

virtual	~sc_prim_channel ()

virtual void	update ()

virtual void	before_end_of_elaboration ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	async_attach_suspending ()

void	async_detach_suspending ()

void	wait ()

void	wait (const sc_event &e)

void	wait (const sc_event_or_list &el)

void	wait (const sc_event_and_list &el)

void	wait (const sc_time &t)

void	wait (double v, sc_time_unit tu)

void	wait (const sc_time &t, const sc_event &e)

void	wait (double v, sc_time_unit tu, const sc_event &e)

void	wait (const sc_time &t, const sc_event_or_list &el)

void	wait (double v, sc_time_unit tu, const sc_event_or_list &el)

void	wait (const sc_time &t, const sc_event_and_list &el)

void	wait (double v, sc_time_unit tu, const sc_event_and_list &el)

void	wait (int n)

void	next_trigger ()

void	next_trigger (const sc_event &e)

void	next_trigger (const sc_event_or_list &el)

void	next_trigger (const sc_event_and_list &el)

void	next_trigger (const sc_time &t)

void	next_trigger (double v, sc_time_unit tu)

void	next_trigger (const sc_time &t, const sc_event &e)

void	next_trigger (double v, sc_time_unit tu, const sc_event &e)

void	next_trigger (const sc_time &t, const sc_event_or_list &el)

void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)

void	next_trigger (const sc_time &t, const sc_event_and_list &el)

void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)

bool	timed_out ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual hierarchy_scope	get_hierarchy_scope ()

Protected Attributes inherited from sc_core::sc_signal_t< T, SC_DEFAULT_WRITER_POLICY >
T	m_cur_val

T	m_new_val

Protected Attributes inherited from sc_core::sc_signal_channel
sc_event *	m_change_event_p

sc_dt::uint64	m_change_stamp

Detailed Description

template<class T, sc_writer_policy POL = SC_DEFAULT_WRITER_POLICY>
class sc_core::sc_signal< T, POL >

Definition at line 346 of file sc_signal.h.
